One Step RT qPCR kit

EQ SARS COV2 One Step RT qPCR kit for wastewater contains a 5x reaction buffer optimized for sensitive and specific detection of SARS COV2 RNA from various sources and purity backgrounds.

(SKU: RN010S)

100.00

For detailed product information please refer to the IFU

Product Details

Description:

One step RT kit contains 5 X reaction buffer optimized for sensitive and specific detection of RNA species from various sources and purity backgrounds. Enzymes come separately in 20X and 200 X formulations to provide flexibility and adaptations to your substrate of interest, depending mainly on the presence of PCR inhibitors (when testing direct sample without RNA extraction or difficult samples like waste-water extracts). Optimizations on SARS COV2 templates in both swab and waste-water extracts using primer/probe sets included in WHO official protocols, in single and multiplex conditions, guarantee the reproducible and efficient qPCR reactions close to the qPCR theoretical limit of detection <5 copies per reaction for pure samples and between 5-50 copies/reaction for “tough samples” *.

*“Tough samples”: RNA samples that are produced from either direct protocol, without column extraction and washing steps, or originating from tissues or cells that have high chemical or enzymatic PCR inhibitory potential (High phenolic substances found in plant tissues or high concentration of RNases, DNases and Proteases context found in blood samples or mammalian tissue samples or fungi cells).

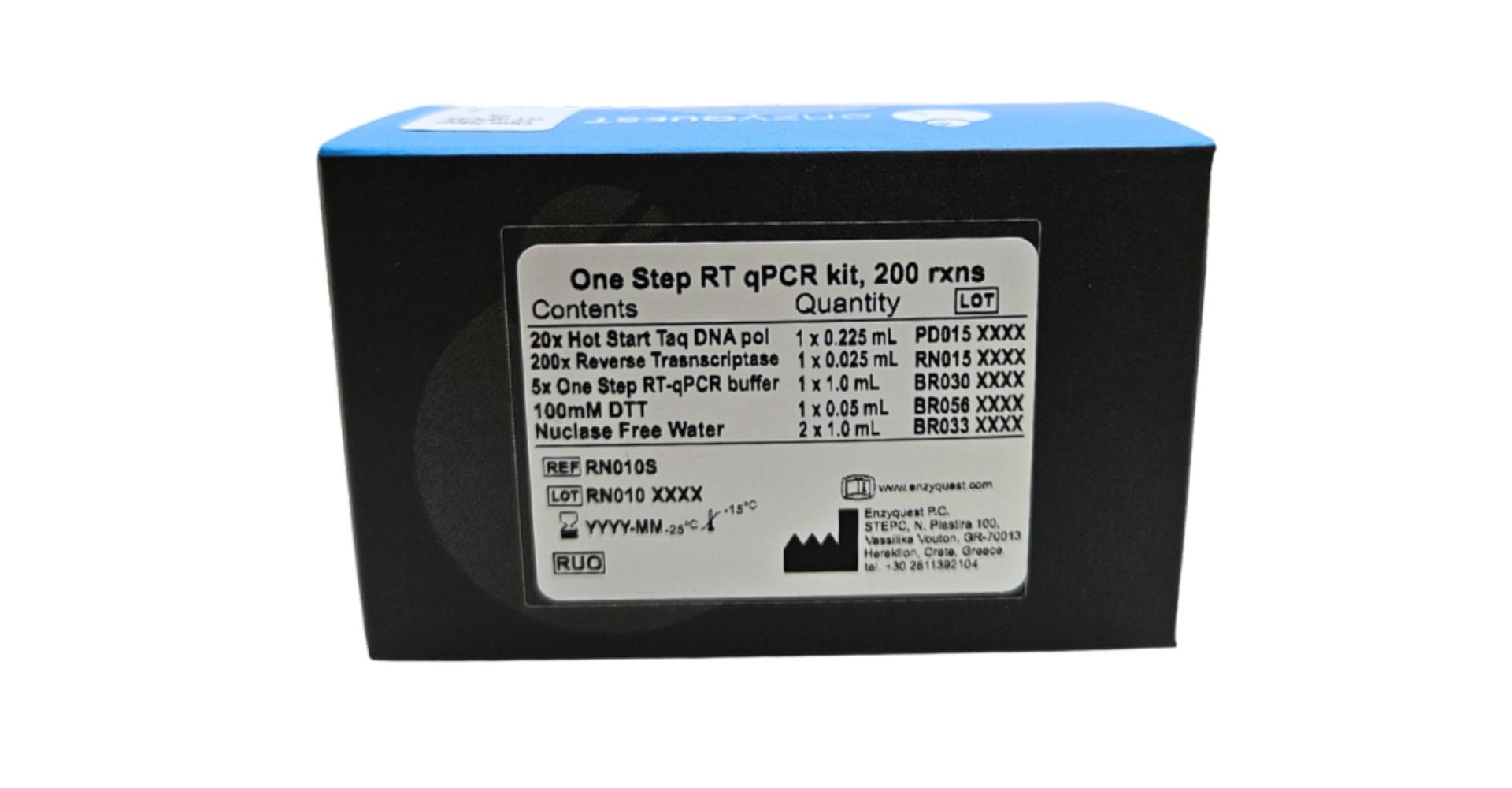

Reagents supplied:

One Step RT qPCR kit, 200 rxns (Cat No: RN010S)
Cat No Description  Tubes No.
BR030-1 5x One Step RT-qPCR buffer, 1 ml
PD015-0.225 20x Hot Start Taq DNA polymerase, 0.225ml
RN015-0.025 200x Reverse Transcriptase, 0.025ml
BR033- 1 Nuclease Free Water, 1 ml

Standard 20 μl reaction:

ComponentStock solutions1 reaction of 20 μlFinal Concentration/Quantity (20 μl assay)
15x One Step RT-PCR buffer5x4 μl1x
2Fw primer10 μΜ0.4 μl0.2 μM
3Rv primer10 μΜ0.4 μl0.2 μΜ
4TaqMan Probes10 μΜ0.2-0.4 μl0.1-0.2 μΜ
520x Hot Start Taq DNA polymerase20x1 μl1x
6200x Reverse Transcriptase200x0.1 μl (0.08-0.12)1x
7Template RNA*0.5-107 copies of target sequence/μl1-10 μl10 fg-500 ng
8Nuclease free waterN/ATill 20 μlN/A
* Substrate quantity: up to 10 μL/reaction is recommended for pure RNA extracts. Use up to 5 μL for “tough” substrates.

Alternative suggestions:

  1. After optimizing conditions and you have found the final primer/probe set you will be using, you may prepare a 10x stock and use it as such.
  2. Sybr or EVA Green may be used instead of TaqMan probe in concentration of 0.2-2x. Start with 1x.
  3. ROX may be added to the mix. Add according to your needs and adjust the water volume.

One Step-RT recommended conditions for single and multiplex One Step RT-qPCR reactions.

Step 1: RT reaction. This step may be set up from 40 – 62 oC. Increase temperature for more highly structured RNA targets.

Step 2: RT inactivation/ Hot Start Taq DNA polymerase activation.

Initial activation of Hot Start at 94oC for 15 minutes is very important in the case of reactions with very low PCR template copies and for obtaining the maximum efficiency in qPCR setups.  DO NOT USE FOR LESS THAN 10 MIN!!

Step 3: Cycle denaturation. It may be set 5-15 seconds. Optimize based on your target.

Step 4: Annealing/Extension step. Temperature and time depend on the primers’/probes’ Tm (melting temp) and amplicons’ length. The primers should be designed at Tm ~ 65 o C. Set this step at 6-10 oC below the lowest oligos’ tm and use 35 seconds for amplicons up to 250 bp. Annealing extension time may be lowered in 5 seconds steps (30 or 25 seconds) depending on the limit of detection and the efficiency required for the assay in question. Lowering time is recommended only if efficiency of the assay is not affected near the limit of detection.

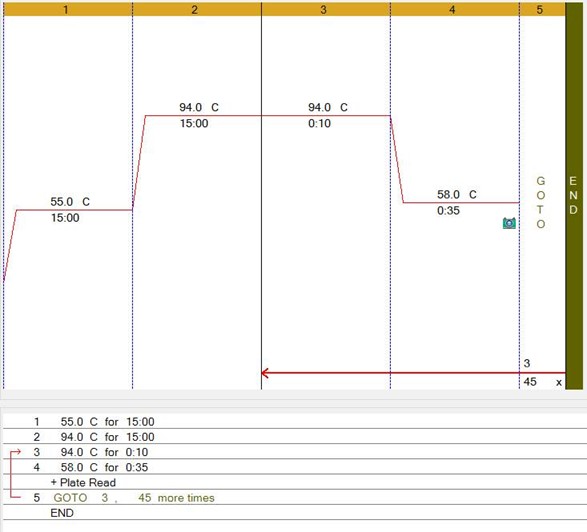

Standard protocol for single and multiplexing

For more detailed guidelines visit the IFU manual.

Additives that improve robustness

In cases of samples with low viral content near the limit of detection (~5-10 copies/μl of wastewater sample) and/or high concentration of inhibitors one may also add extra DTT or T4gp32 protein to improve reactions’ efficiency. Final concentrations in qPCR reactions should be 1mM for DTT and 0.05 μg/μl for T4gp32. An example of the reaction setup including both additives may be found below:

ComponentConcentration of Stock solutions1 reaction of 20 μlFinal Concentration/Quantity (20 μl assay)
15x One Step RT-PCR buffer5x4 ㎕1x
210x SARS COV2 Oligos mix10x2 ㎕1x
3DTT (Customer provided)100 mM0.2 ㎕1 mM
4Gp32 (Customer provided)10 μg/μl0.1 ㎕0.05 μg/μl
520x Hot Start Taq DNA polymerase20x1 ㎕1x
6200x Reverse Transcriptase200x0.1 ㎕1x
7Template RNA*5-105 copies of target sequence/μl2-4 ㎕N/A
8Nuclease Free WaterN/ATill 20 ㎕N/A
* Substrate quantity: up to 10 μL/reaction is recommended for pure RNA extracts. Use up to 5 μL for “tough” substrates.

Recommended suppliers:

  • For DTT, any product that is compatible with molecular biology applications (example A2948/Applichem, DTT Molecular biology grade or equivalent)
  • For Gp32, use any provider that is compatible with molecular biology applications. The inhouse assays have been performed with cat number M300S or L from New England Biolabs (T4 Gene 32 Protein)

DTT may reverse mildly the inhibition potential of the sample whereas both should be used when high inhibition is suspected.

Other Quality Controls:

Certified as DNase-RNase free using fluorescently labeled RNase and DNase probes.  Efficiency between 90-110%, with R2 value >0.99 of each lot is estimated by a standard curve assay produced over 5 logs of EURM019 substrate (https://crm.jrc.ec.europa.eu/p/EURM-019)

Shipping

Shipped on blue ice or dry ice.

Storage conditions

Store at -20οC ± 5ο

Shelf life

1 year upon production

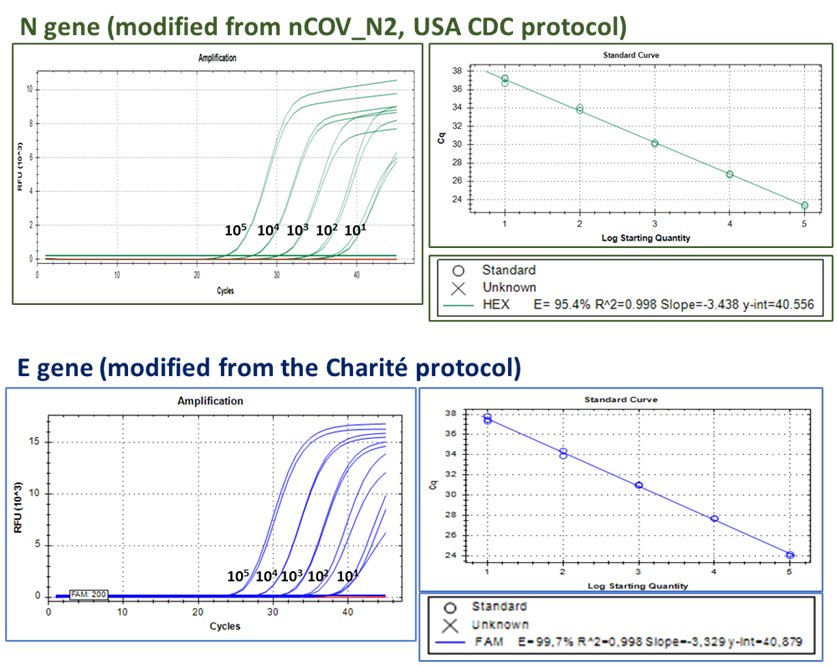

Example: SARS COV 2 standard EURM019

SARS COV2 standard curves produced by One Step RT qPCR kit (Cat No: RN010S). The standard curves were produced by analyzing the EURM019 SARS COV 2 standard over 5 logs. Standard dilutions were prepared, having as a given that the EURM019 stock solution contains 108 copies of SARS COV2 chimeric transcripts/μl (detailed info for EURM019 used may be found at https://crm.jrc.ec.europa.eu/p/EURM-019). Since the quantification of the EURM019 standard, performed by digital droplet PCR by manufacturer, produced results between 6 – 7.6 x 107 copies/μl depending on the primer set used, the actual number of copies that were introduced in each reaction may be 24-40 % less than indicated in the figure.

Reactions were set in duplicates for 105-10copies reactions and in triplicates for 10 copies reactions.

The Baseline was manually set to 200 Relative Fluorescent Units.

The results were automatically produced by CFX Maestro software. The reactions were incubated to either CFX96 or OPUS96 qPCR machines with very similar results.

Details regarding the primer sets used may be found at: https://www.who.int/docs/default-source/coronaviruse/whoinhouseassays.pdf
